Detail produk:
|
| Bagian OEM: | OXY-W4-N | akhir pasien: | bungkus neonatus |
|---|---|---|---|
| Penyambung: | 10Pin | panjangnya: | 10 kaki |
| Panjang gelombang sensor: | 660/905 | Aplikasi: | Monitor Pasien Datex 10Pin |
1.Deskripsi: Datex Ohmeda Kompatibel Neonate Wrap Direct-Connect SpO2 Sensor - OXY-W4-N
2. Referensi Silang Nomor Bagian OEM
| Pabrikan | Bagian OEM # |
|---|---|
| Datex Ohmeda | OXY-W4-N |
3. Kompatibilitas
| Pabrikan | Model |
|---|---|
| Datex Ohmeda | AS/3, AS/3 Compact, Aespire, Aespire 15, CG/2S, CH-RS, CH/2S, CH/S, CS/3, CS/5, CS/5 Compact, Capnomac Ultima, Cardiocap I, Cardiocap II, Cardiocap/5, Light Monitor, M-ESTP, M-ESTPR, M-NESTPR, M-PRESTN, OSP-200, Oscar II, Satellite, Satellite Plus II, Satellite Trans, System 5, Trans Plus, ULTS00, ULTSIO , ULTSVI, ULTSVO |
4.Spesifikasi
| Jenis konektor | 10Pin |
| Bahan kabel | TPU medis |
| Diameter kabel: | 4.0 |
| akhir pasien | Bungkus neonatus |
| Bebas Lateks | Ya |
| Panjang gelombang | 660/905 |
| Panjang kabel | 10 kaki |
| Sertifikat | ISO13485, CE |
| Aplikasi | Spo2 |
| Ukuran pasien | neonatus |
| Memancarkan panjang gelombang cahaya | 660/905-2 | |
| Bahan Kabel | Jaket TPU, diameter 2.5*5.0mm | |
| Jenis Sensor | neonatus | |
| Rentang pengujian Spo2 | 70%-100% | |
| Lingkungan penyimpanan dan transportasi | -10 °C~+40 °C | |
| Suhu Operasional | 5 °C-40 °C | |
| Kelembaban | 0-80% | |
| Tekanan | 86kpa-106kpa | |
| Ketepatan | Spo2 | ±2%(90%-100%) |
| ±3% (70%-89%) | ||
| tidak ditentukan (0-69%) | ||
| Denyut nadi | ±1 bpm (30-59bpm) | |
| ±2 bpm (60-149bmp) | ||
| ±3 bpm (150-245bmp) | ||

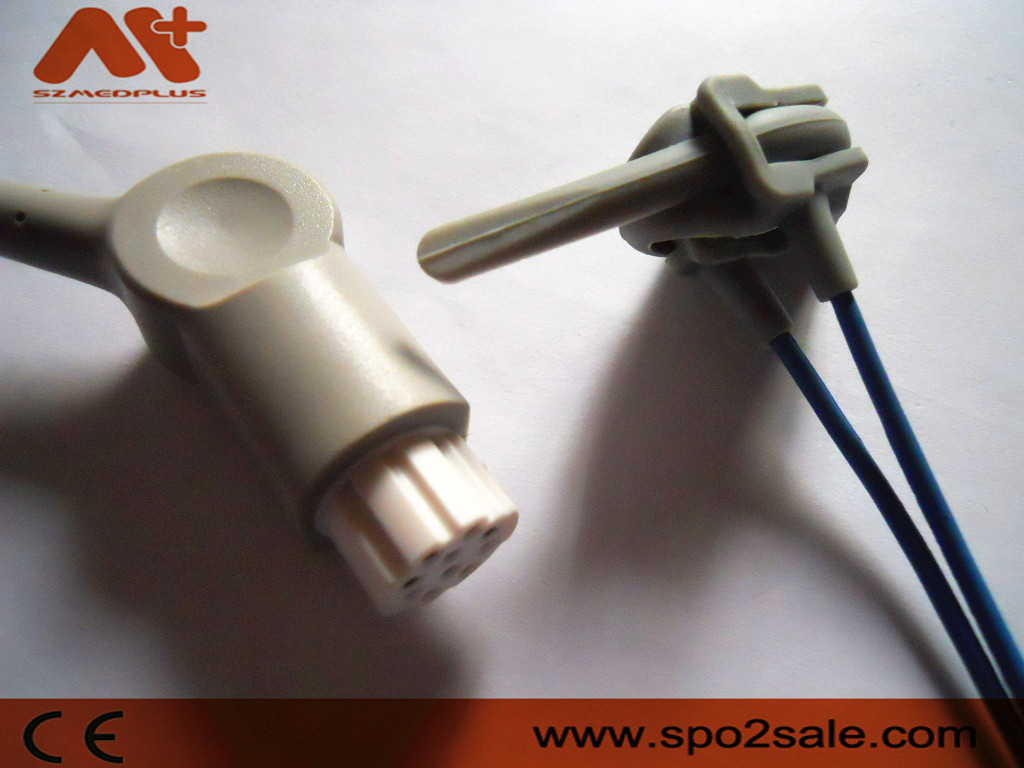

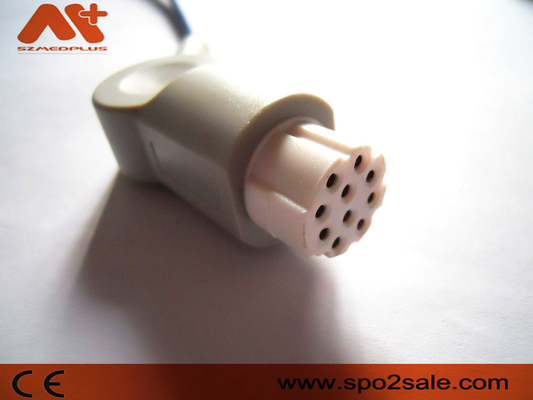

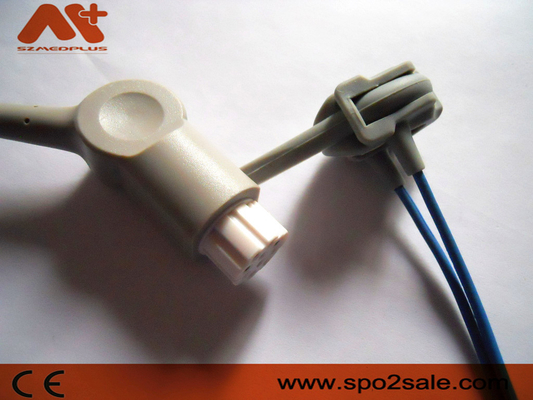

5.Gambar
