Detail produk:
|
| Bagian OEM: | M1191BL | akhir pasien: | Tip Lembut Dewasa |
|---|---|---|---|
| Konektor: | 8pin | Panjang: | 10 kaki |
| Panjang gelombang sensor: | Nomor telepon 660/905 | Aplikasi: | Monitor pasien Philips 8pin |
| Menyoroti: | CE Dewasa Philips M1191BL,Philips M1191BL 8 Pin,8 Pin Ujung Lembut Sensor SpO2 |
||
1. Deskripsi: HP Kompatibel Dewasa Soft Tip Direct-Connect SpO2 Sensor - M1191BL
2Nomor Bagian OEM Referensi silang
| Produsen | Bagian OEM # |
|---|---|
| AMC | PR-A900-1006V |
| Envitec | R-2414-30,R-2414-30plus (Autoclavable) |
| Pacific Medical | NSPH200 |
| HP | M1191BL,M1191AL |
| Tenacore | TP1503SP-10 |
3Kompatibilitas
| Produsen | Model |
|---|---|
| Goldway | G30, G40 |
| HP | C1, C3, FM20, FM30, FM40, FM50, HP Viridia 24C, HeartStart MRx, IntelliVue MP5, M2705A, M3, M3001A, M3001A A01, M3001A A01C06, M3001A A01C12, M3001A A01C18, M4, M4841A, MP 20, MP 30, MP 40, MP 50,MP 60, MP 70, MP 80, MP 90, HP Heartstart defibrillator dan IntelliVue, SureSigns VS2, SureSigns VS2+, SureSigns VS3, SureSigns VS4, VM4, VM6, VM8, Viridia 24C |
| Solaris | NT2perdagangan |
4Spesifikasi
| Jenis konektor | 8Pin |
| Bahan kabel | TPU medis |
| Diameter kabel | 4.0 |
| Akhir pasien | Tip Ringan Dewasa |
| Bebas lateks | Ya, aku tahu. |
| Panjang gelombang | 660/905 |
| Panjang kabel | 10 kaki |
| Sertifikat | ISO13485, CE |
| Aplikasi | Spo2 |
| Ukuran pasien | Dewasa |
| Mengeluarkan panjang gelombang cahaya | 660/905-2 | |
| Bahan Kabel | Jaket TPU, diameter 4,0 mm | |
| Jenis sensor | Dewasa | |
| Jangkauan pengujian Spo2 | 70%-100% | |
| Lingkungan penyimpanan dan transportasi | -10°C~+40°C | |
| Suhu operasi | 5°C-40°C | |
| Kelembaban | 0-80% | |
| Tekanan | 86kpa-106kpa | |
| Keakuratan | Spo2 | ± 2% ((90%-100%) |
| ± 3% ((70%-89%) | ||
| tidak ditentukan ((0-69%) | ||
| Detak jantung | ± 1 bpm ((30-59 bpm) | |
| ± 2 bpm ((60-149 bmp) | ||
| ± 3 bpm ((150-245 bmp) | ||

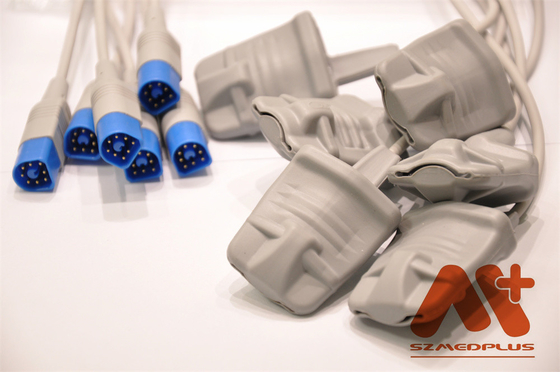

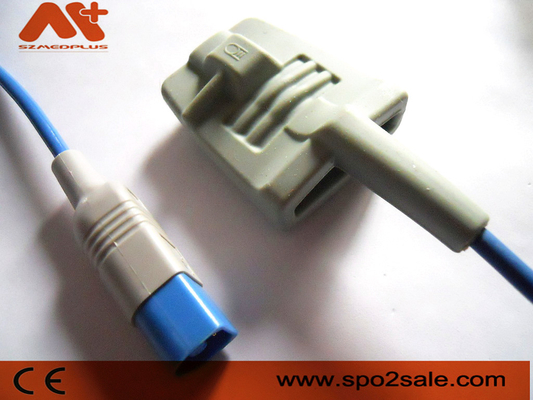

5.Gambar
