Detail produk:
|
| OEM Part: | M1196A | patient end: | Adult finger clip |
|---|---|---|---|
| Connector: | 8Pin | Length: | 10ft |
| Sensor wavelength: | 660/905 | Application: | Philips 8Pin Patient Monitor |
| Menyoroti: | CFDA Philips M1196A,Philips M1196A Dewasa,Klip Jari Rumah Sakit Sensor SpO2 |
||

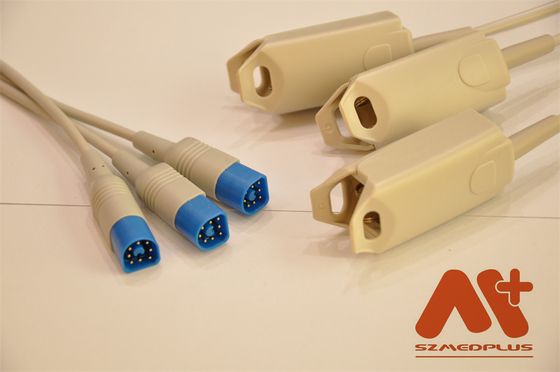

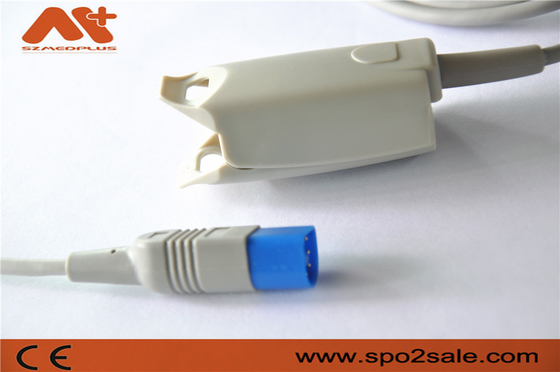

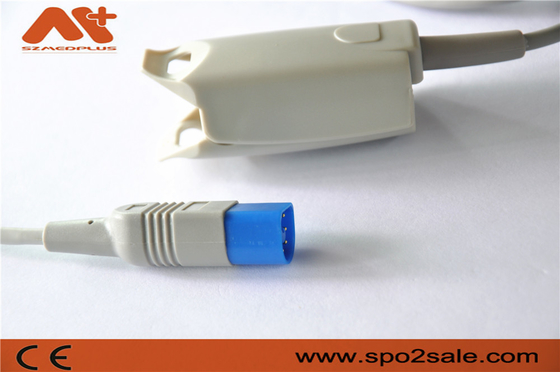

1. Deskripsi: HP Kompatibel Clip Jari Dewasa Direct-Connect SpO2 Sensor - M1196A
2Nomor Bagian OEM Referensi silang
| Produsen | Bagian OEM # |
|---|---|
| Beta Biomed | B505-1006V-10 |
| HP | M1196A,989803128631,989803174381 (2 m),M1196S (2 m),989803205901 |
| Sage | P01-30M |
3Kompatibilitas
| Produsen | Model |
|---|---|
| Goldway | G30, G40 |
| HP | C1, C3, FM20, FM30, FM40, FM50, HP Viridia 24C, HeartStart MRx, IntelliVue MP5, M2705A, M3, M3001A, M3001A A01, M3001A A01C06, M3001A A01C12, M3001A A01C18, M4, M4841A, MP 20, MP 30, MP 40, MP 50,MP 60, MP 70, MP 80, MP 90, HP Heartstart defibrillator dan IntelliVue, SureSigns VS2, SureSigns VS2+, SureSigns VS3, SureSigns VS4, VM4, VM6, VM8, Viridia 24C |
| Solaris | NT2perdagangan |
4Spesifikasi
| Jenis konektor | 8Pin |
| Bahan kabel | TPU medis |
| Diameter kabel | 4.0 |
| Akhir pasien | Clip jari orang dewasa |
| Bebas lateks | Ya, aku tahu. |
| Panjang gelombang | 660/905 |
| Panjang kabel | 10 kaki |
| Sertifikat | ISO13485, CE |
| Aplikasi | Spo2 |
| Ukuran pasien | Dewasa |
| Mengeluarkan panjang gelombang cahaya | 660/905-2 | |
| Bahan Kabel | Jaket TPU, diameter 4,0 mm | |
| Jenis sensor | Dewasa | |
| Jangkauan pengujian Spo2 | 70%-100% | |
| Lingkungan penyimpanan dan transportasi | -10°C~+40°C | |
| Suhu operasi | 5°C-40°C | |
| Kelembaban | 0-80% | |
| Tekanan | 86kpa-106kpa | |
| Keakuratan | Spo2 | ± 2% ((90%-100%) |
| ± 3% ((70%-89%) | ||
| tidak ditentukan ((0-69%) | ||
| Detak jantung | ± 1 bpm ((30-59 bpm) | |
| ± 2 bpm ((60-149 bmp) | ||
| ± 3 bpm ((150-245 bmp) | ||
5.Gambar
