Detail produk:
|
| Bagian OEM: | Nomor telepon 0600-00-0093 | akhir pasien: | Neonatus Y |
|---|---|---|---|
| Konektor: | Konektor Plastik 6Pin Ganda 40 | Panjang: | 10 kaki |
| Panjang gelombang sensor: | Nomor telepon 660/905 | Aplikasi: | Seri Mindray MEC, Seri DPM, Seri Passport |

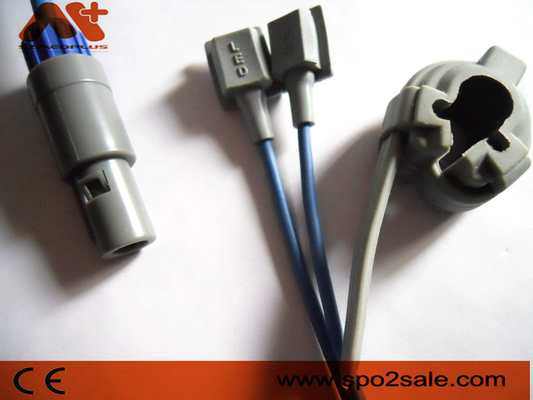

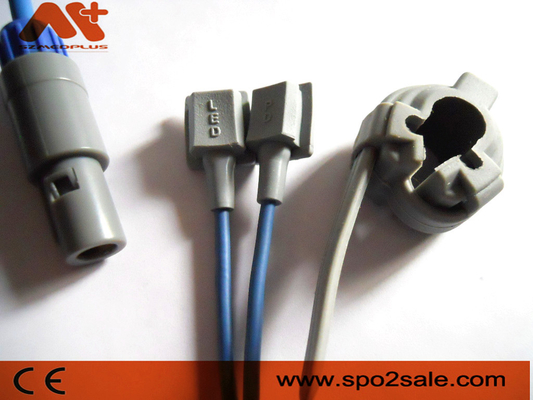

1.Deskripsi: Mindray > Datascope Kompatibel Neonate Multi Situs Y Direct-Connect SpO2 Sensor - 0600-00-0093
2. Referensi Silang Nomor Bagian OEM
| Pabrikan | Bagian OEM # |
|---|---|
| Mindray > Datascope | 0600-00-0093 |
3. Kompatibilitas
| Pabrikan | Model |
|---|---|
| ARI | 800B |
| Instrumentasi Tingkat Lanjut | PM-2000A Pro, PM1000F |
| Teknologi Kardio | GT-900 |
| hati-hati | BPS-9000T |
| konteks | HMS6500 |
| Kreatif | PC9000, UP-6000 |
| Diksi | Badai 5300, Badai 5500, Badai 5800, Badai 5900 |
| Draeger | pemandangan 120 |
| Edan | F9, M3A, M3B, M50, M8, M80, M8A, M8B, M9, M9A, iM50, iM60, iM70, iM8, iM80 tanpa teknologi Nellcor OxiMax, iM8A, iM8B, iM9, iM9A |
| Kontron | 7138, 7840, 7845 |
| medis | M-1000, M-1100, MEDEC-1000 |
| Mindray > Datascope | 6201, 809B, Accutorr V, DPM1, DPM2, DPM3, DPM4, DPM5, Duo, MEC 100, MEC 1000, MEC 1200, MEC 200, MEC 2000, MEC-509B, PM 600, PM 6000 (Baru), PM 7000, PM 8000, PM 9000, PM 9000 Ekspres, Paspor V, Paspor XG, Trio, VS 800, VS 900 |
| Penlon InterMed | PM-8000 |
| Philips | M3 |
| sonolife | Gelombang Cerdas 7 |
| Venni | VI-3510P, VI-8410P |
4.Spesifikasi
| Jenis konektor | Plastik 6Pin Ganda 40 |
| Bahan kabel | TPU medis |
| Diameter kabel: | 4.0 |
| akhir pasien | Multi Situs Y |
| Bebas Lateks | Ya |
| Panjang gelombang | 660/905 |
| Panjang kabel | 10 kaki |
| Sertifikat | ISO13485, CE |
| Aplikasi | Spo2 |
| Ukuran pasien | neonatus |
| Memancarkan panjang gelombang cahaya | 660/905-2 | |
| Bahan Kabel | Jaket TPU, diameter 4.0mm | |
| Jenis Sensor | neonatus | |
| Rentang pengujian Spo2 | 70%-100% | |
| Lingkungan penyimpanan dan transportasi | -10 °C~+40 °C | |
| Suhu Operasional | 5 °C-40 °C | |
| Kelembaban | 0-80% | |
| Tekanan | 86kpa-106kpa | |
| Ketepatan | Spo2 | ±2%(90%-100%) |
| ±3% (70%-89%) | ||
| tidak ditentukan (0-69%) | ||
| Denyut nadi | ±1 bpm (30-59bpm) | |
| ±2 bpm (60-149bmp) | ||
| ±3 bpm (150-245bmp) | ||
5.Gambar
