Detail produk:
|
| OEM Part: | 2653 | patient end: | Adult Soft Tip |
|---|---|---|---|
| Connector: | DB9 Connector | Application: | 9216, 9226, All, Pronto-7, R7CDS-1, Rad-5, Rad-57, Rad-8, Rad-87, Radical-7 |
| Menyoroti: | Sensor Spo2 Ujung Lembut yang Dapat Digunakan Kembali,szmedplus 2653 LNCS DB-I,Ujung Lembut szmedplus 2653 |
||
1. Deskripsi: szmedplus Kompatibel Dewasa Soft Tip pendek SpO2 Sensor - 2653
2Nomor Bagian OEM Referensi silang:
| Produsen | Bagian OEM # |
|---|---|
| Massimo | 2653 (LNCS DB-I) |
| Sage | P10S-49M |
| Stryker > MEDTRONI > Kontrol Fisiologi | 11171-000052 |
| Tenacore | TCPS-1404-0112,TP1515SP |
| Zoll | 8000-0379 |
3Kompatibilitas:
| Produsen | Model |
|---|---|
| Bitmos | sat 800, sat 801, sat 805, sat 816, satPuls |
| CAS Med | 740 |
| Datex Ohmeda | Pemanas Bayi Jerapah, S/5 |
| Draeger | Infinity Delta, Infinity Delta XL, Infinity Kappa, Infinity M540, Narkomed 6400 |
| GE Healthcare > Korometri | 128, 250, 250cx, 259, TRAM 450SL |
| GE Healthcare > Critikon > Dinamap | Carescape B650, Carescape B850, Carescape V100, Carescape V100 dengan teknologi szmedplus, Carescape VC150, Dinamap ProCare dengan szmedplus Pro 1000, Pro 300V2, ProCare 300, ProCare Ausculatory 400,ProSeries V2, V300 |
| GE Healthcare > Marquette | 8000 e Eagle 1000, Dash 2000, Dash 2500, Dash 3000, Dash 4000, Dash 5000, Seri Dash, Eagle, Modul PDM, Procare B40, SOLAR, Smk SMV, Solar 7000, Solar 8000, Solar 8000M, Seri Solar, TRAM Modular,Trem 451, i/9500, i/9500 (Tram 451N5/851N5), Seri x50SL |
| Invivo | Pengiring II OPT30 Prisma, T8 |
| Szmedplus | 9216, 9226, Semua, Pronto-7, R7CDS-1, Rad-5, Rad-57, Rad-8, Rad-87, Radical-7 |
| Pria | Horizon XVu |
| Mindray > Datascope | Accutor V, Accutorr 3, Accutorr 7, Accutorr Plus, Accutorr V, BeneView T1, BeneView T5, BeneView T8, BeneVision N1, BeneVision TD60, BeneVision TMS60, BeneVision TMS80, Beneheart D6, DPM4, DPM6, DPM7,Duo, EPM4, MEC 12, MPM, PM 6000, PM 6800, PM 7000, PM 8000, PM 9000, Paspor 12, Paspor 2, Paspor 2LT, Paspor 8, Paspor V, Paspor XG, Spektrum, Spektrum OR, Trio, V12, V21, VS 800, cPM 12,cPM 8, ePM 10M, ePM 12M, iPM-9800 |
| Natus | Connex |
| Penlon InterMed | Semua |
| HP | Heartstream XL, IntelliVue FAST-SpO2, IntelliVue MP70, M1020B, M2601A, M3000A, M3001A, M3001A A03, M3001A A03C06, M3001A A03C12, M3001A A03C18, M3002A, M3002A MMS X2, M3500B, M4735A, M8102A,M8102A MP2, M8105A MP5, M8105AS, MP 30, SureSigns VS2, SureSigns VS3, VM4 |
| Respironik | Alice 5, Alice 6 |
| Stryker > MEDTRONI > Kontrol Fisiologi | Lifepak 11, Lifepak 12, Lifepak 15, Lifepak 20, Lifepak 20E |
| Welch Allyn | 1500, 45NE0-E1 LX, 73MT-B, 74ME-B, 74MX-B, 75 MT-B Connex Spot, 75ME-B, Propaq CS, Propaq LT, Seri 420 monitor, Spot Vital Signs 42MOB, Spot Vital Signs 42MTB-E1, Spot Vital Signs lXi,Tanda-tanda penting seri 4700 |
| Zoll | Seri E, Seri M, Seri R, Seri X |
4Spesifikasi
| Jenis konektor | DB9 |
| Bahan kabel | TPU medis |
| Diameter kabel | 4.0 |
| Akhir pasien | Tip dewasa lembut |
| Bebas lateks | Ya, aku tahu. |
| Panjang gelombang | 660/905 |
| Panjang kabel | 3 kaki |
| Sertifikat | ISO13485, CE |
| Aplikasi | Spo2 |
| Ukuran pasien | Dewasa |
| Mengeluarkan panjang gelombang cahaya | 660/905-2 | |
| Bahan Kabel | Jaket TPU, diameter 4,0 mm | |
| Jenis sensor | Dewasa, Anak-anak | |
| Jangkauan pengujian Spo2 | 70%-100% | |
| Lingkungan penyimpanan dan transportasi | -10°C~+40°C | |
| Suhu operasi | 5°C-40°C | |
| Kelembaban | 0-80% | |
| Tekanan | 86kpa-106kpa | |
| Keakuratan | Spo2 | ± 2% ((90%-100%) |
| ± 3% ((70%-89%) | ||
| tidak ditentukan ((0-69%) | ||
| Detak jantung | ± 1 bpm ((30-59 bpm) | |
| ± 2 bpm ((60-149 bmp) | ||
| ± 3 bpm ((150-245 bmp) | ||

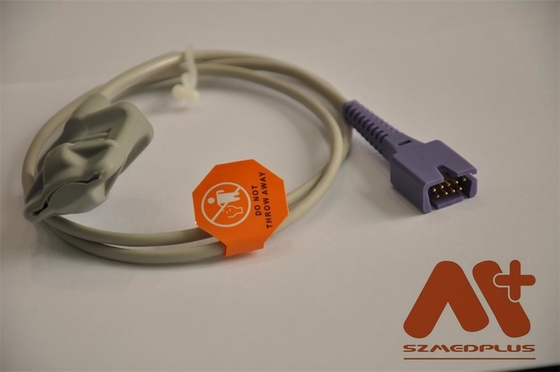

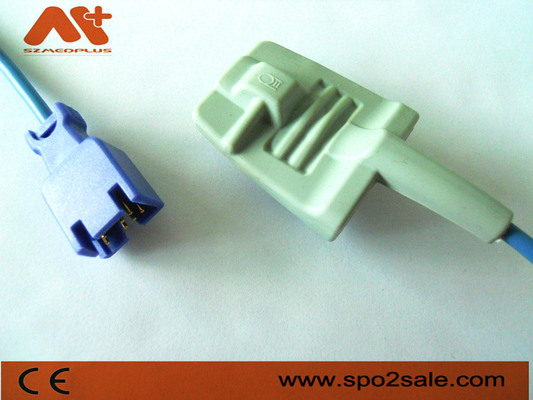

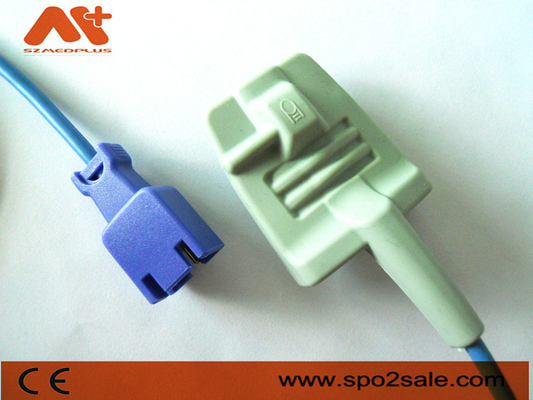

5.Gambar
